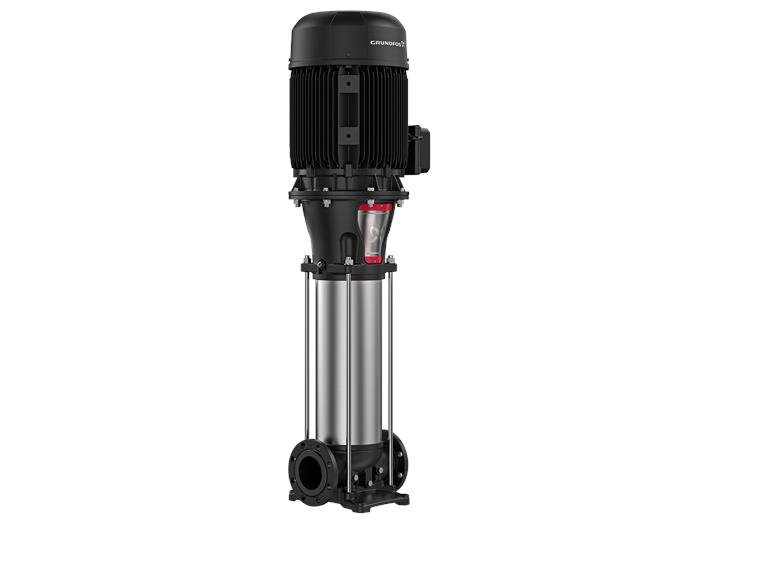

Grundfos CR 185-8 A-F-A-V-HQQV

• Process water systems
• Hygienic washing and cleaning systems
• Seawater applications
• Water treatment
• Acids and alkalis
• Boiler power
• Applications involving temperature control with very high, low or highly variable temperatures

• Can be used for a wide range of applications
• Configurable for extremely high pressures, extreme temperatures and aggressive, abrasive or flammable liquids
• High efficiency
• Maintenance-friendly
• Highly corrosion resistant
• Space-saving design

Productnaam CR 185-8 A-F-A-V-HQQV
Productnummer 99886990
EAN nummer 5713835736000

Pump housing Ductile iron
EN 1563 EN-GJS-500-7
Impeller Stainless steel
EN 1.4401
Material code A
Code for rubber V
Lower WC/WC
Support bearing Graflon
Thrust treatment device SiC/WC
Material certified according to European standards

Maximum ambient temperature 55 ° C
Maximum operating pressure 40 bar
max. pressure at permissible temp 25 bar / 90 °C
40 bar / 80 °C
Type of connection DIN
Size of the suction connection DN 200
Pressure connection size DN 200
Pressure stage for pipe connection PN 40
Flange size of the motor FF600
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -20 .. 90 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Motor standard IEC
Engine type SIEMENS
IE efficiency class IE3
Rated power – P2 200 kW
Power (P2) required for pump 200 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-420D / 660-725Y V.
Rated current 345-310/199-179 A
Starting current 720-720 %
Cos phi – power factor 0.92
Rated speed 2982 rpm
Efficiency IE3 95.8%
Motor efficiency at rated load 95.8-95.8 %
Engine efficiency at 3/4 power 96.0-96.0 %
Motor efficiency at half power 95.7-95.7 %
Pool number 2
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection PTC
Engine No. 83U15250

Net weight 1580 kg
Gross weight 1840 kg
Transport volume 5.02 m³
Thrust Treatment Device Y
Country of origin DK
HS code 84137075
Frequency converter NONE
