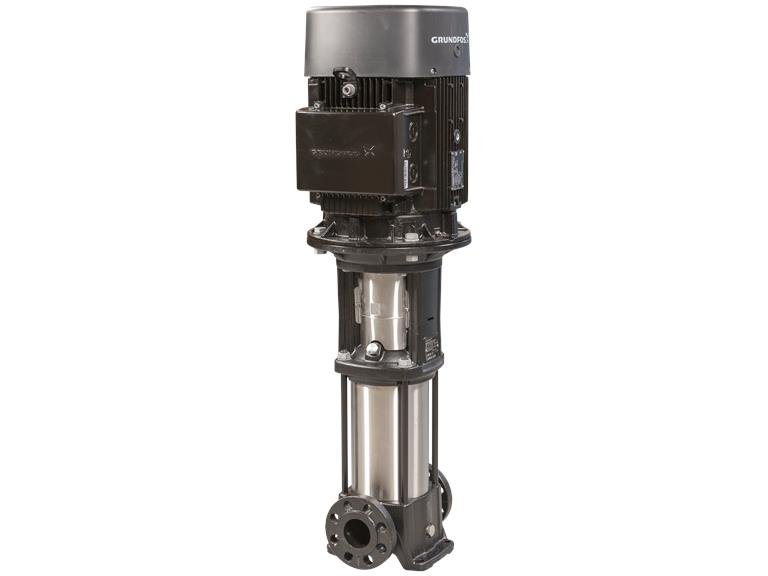

Grundfos CR 3-25 A-FGJ-A-E-HQQE

• Process water systems
• Hygienic washing and cleaning systems
• Seawater applications
• Water treatment
• Acids and alkalis
• Boiler power
• Applications involving temperature control with very high, low or highly variable temperatures

• Can be used for a wide range of applications
• Configurable for extremely high pressures, extreme temperatures and aggressive, abrasive or flammable liquids
• High efficiency
• Maintenance-friendly
• Highly corrosion resistant
• Space-saving design

Productnaam CR 3-25 A-FGJ-A-E-HQQE
Productnummer 96513347
EAN nummer 5700396636757

Pump housing Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Impeller Stainless steel
EN 1.4301
AISI 304
Material code A
Code for rubber E.
Lower SIC

Maximum ambient temperature 60 ° C
Maximum operating pressure 25 bar
Max. pressure at permissible temp 25 bar / 120 °C
25 bar / -20 ° C
Connection type DIN / ANSI / JIS
Size of the suction connection DN 25/32
Pressure connection size DN 25/32
Pressure stage for pipe connection PN 25
Pressure stage of the suction connection 250 lb
Flange size of the motor FT115
Pipe connection code FGJ

Fluid handled Water
Liquid temperature range -20 .. 120 ° C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Motor standard IEC
Engine type 90LE
IE efficiency class IE3
Rated power - P2 2.2 kW
Power (P2) required for pump 2.2 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-415D V
Nominal current 4.65 A.
Starting current 840-920 %
Cos phi - power factor 0.86-0.80
Nominal speed 2890-2910 rpm
Efficiency IE3 85.9%
Motor efficiency at rated load 85.9-85.9 %
Motor efficiency at 3/4 power 88.2 %
Motor efficiency at half power 88.0 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Motor protection NONE
Engine No. 85U11908

Minimum Efficiency Index, MEI ≥ 0.70
Netto gewicht 46.9 kg
Bruto gewicht 49.8 kg
Transport volume 0.13 m³
Country of origin HU
HS code 84137075
Frequency converter NONE
