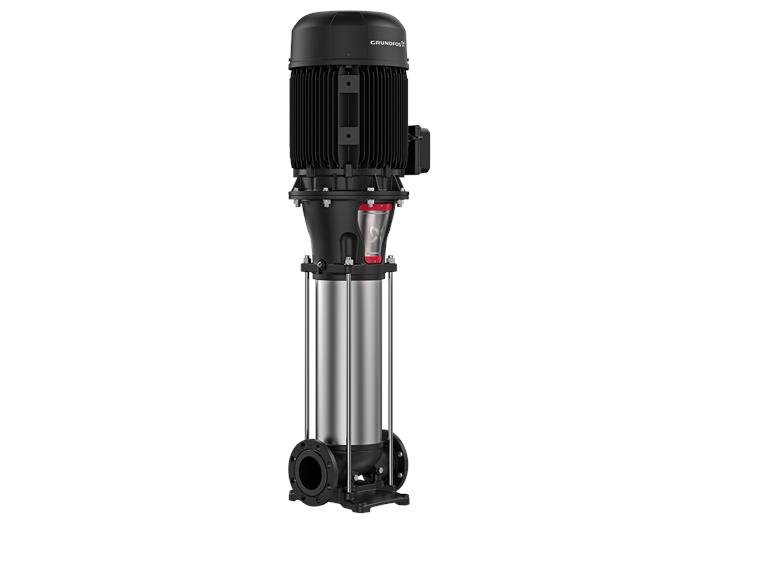

Grundfos CR 95-3-2 AFAE-HQQE

• Process water systems
• Hygienic washing and cleaning systems
• Seawater applications
• Water treatment
• Acids and alkalis
• Boiler power
• Applications involving temperature control with very high, low or highly variable temperatures

• Can be used for a wide range of applications
• Configurable for extremely high pressures, extreme temperatures and aggressive, abrasive or flammable liquids
• High efficiency
• Maintenance-friendly
• Highly corrosion resistant
• Space-saving design

Product name CR 95-3-2 AFAE-HQQE
Product number 99141739
EAN number 5712607527211

Pump housing Ductile iron
EN 1563 EN-GJS-500-7
Impeller Stainless steel
EN 1.4301
Material code A
Code for rubber E.
Lower WC/WC
Support bearing Graflon
Material certified according to European standards

Maximum ambient temperature 60 ° C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Size of the suction connection DN 100
Size of the pressure connection DN 100
Pressure stage for pipe connection PN 16
Flange size of the motor FF300
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -20 .. 120 ° C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Motor standard IEC
Engine type 160LB
IE efficiency class IE3
Rated power - P2 18.5 kW
Power (P2) required for pump 18.5 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-415D / 660-690Y V
Nominal current 34.5-32.5 / 20.0-18.8 A.
Starting current 830-980 %
Cos phi - power factor 0.89-0.85
Nominal speed 2940-2950 rpm
Efficiency IE3 92.4%
Motor efficiency at rated load 92.4-92.4 %
Motor efficiency at 3/4 power 93.2 %
Motor efficiency at half power 93.2 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.

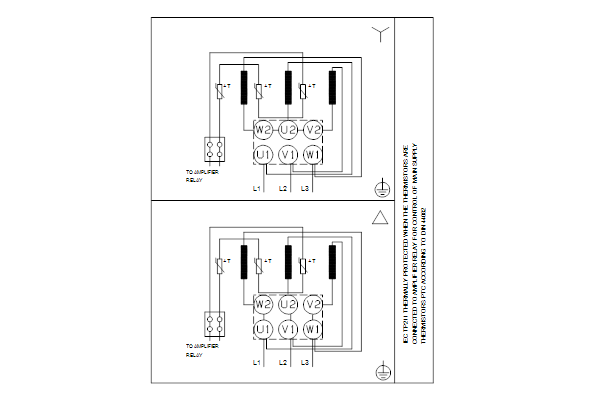

Motor protection PTC
Engine No. 85U17528

Net weight 224 kg
Gross weight 267 kg
Transport volume 0.611 m³
Finnish LVI no. 4925536
Thrust treatment device N
Country of origin DK
HS code 84137075
Frequency converter NONE
