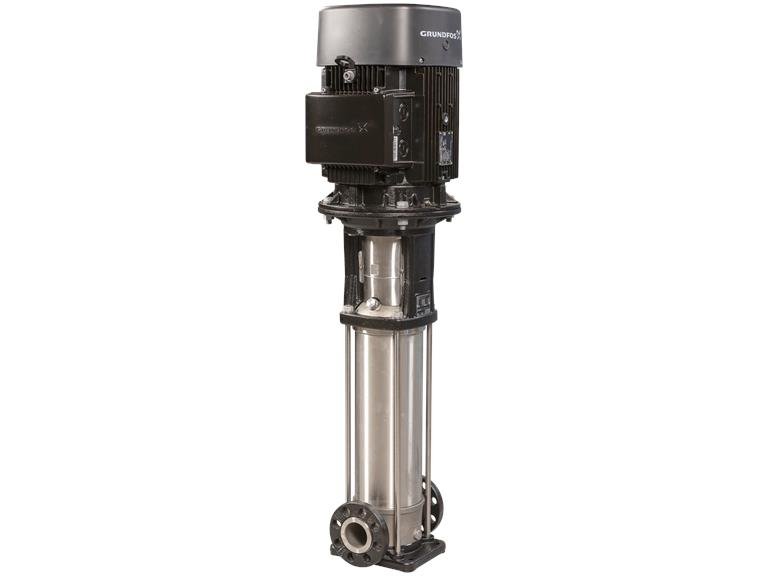

Grundfos CRN 10-4 A-FGJ-AE-HQQE
Grundfos CRN 10-4 A-FGJ-AE-HQQE
Request a free quote
Extensive product information
Applications
• Air conditioning
• Heating in commercial buildings/industry
• Pressure boosting in commercial buildings
• Wash and clean
• Cooling
• Industrial process water treatment
• Dirty water
• Drinking water treatment
• Irrigation
• Water distribution
Features and benefits
• Can be used for a wide range of applications
• Highly efficient
• High hydraulic efficiency
• Suitable for challenging liquids and situations
• Suitable for liquid temperatures up to 180°C at a maximum of 25 bar (optional)
• Maintenance-friendly
• Highly corrosion resistant
• Space-saving design
Specifications
Product name CRN 10-4 A-FGJ-AE-HQQE
Product number 96501059
EAN number 5700396214535
Materials
Pump housing Stainless steel
EN 1.4408
AISI 316
Impeller Stainless steel
EN 1.4401
AISI 316
Material code A
Code for rubber E.
Lower SIC
Installation details
Maximum ambient temperature 60 ° C
Maximum operating pressure 25 bar
Max. pressure at permissible temp 25 bar / 120 °C
25 bar / -20 ° C
Connection type DIN / ANSI / JIS
Size of the suction connection DN 40
Size of the pressure connection DN 40
Pressure stage for pipe connection PN 25
Pressure rating of the suction connection 300 lb
Flange size of the motor FT115
Pipe connection code FGJ
Medium
Fluid handled Water
Liquid temperature range -20 .. 120 ° C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³
Electrical data
Motor standard IEC
Engine type 90SD
IE efficiency class IE3
Rated power – P2 1.5 kW
Power (P2) required for pump 1.5 kW
Mains frequency 50 Hz

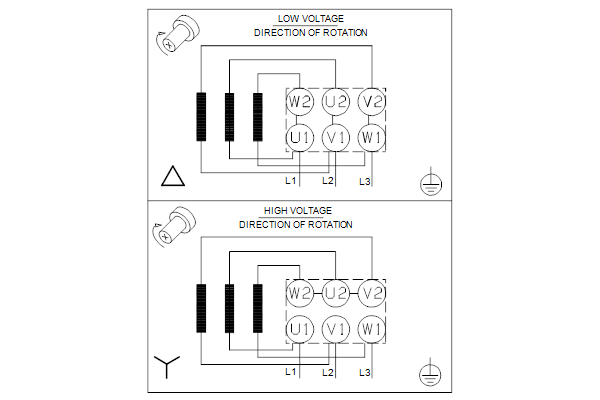

Rated voltage 3 x 220-240D/380-415Y V
Rated current 5.70/3.30 A
Starting current 750-820 %
Cos phi – power factor 0.84-0.78
Nominal speed 2890-2910 rpm
Efficiency IE3 84.2%
Motor efficiency at rated load 84.2-84.2 %
Motor efficiency at 3/4 power 86.4 %
Motor efficiency at half power 86.0 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Motor protection NONE
Engine No. 85U01906
Other information
Minimum Efficiency Index, MEI ≥ 0.70
Net weight 45 kg
Gross weight 49 kg
Transport volume 0.094 m³
Finnish LVI no. 4925609
Country of origin HU
HS code 84137075
Frequency converter NONE
