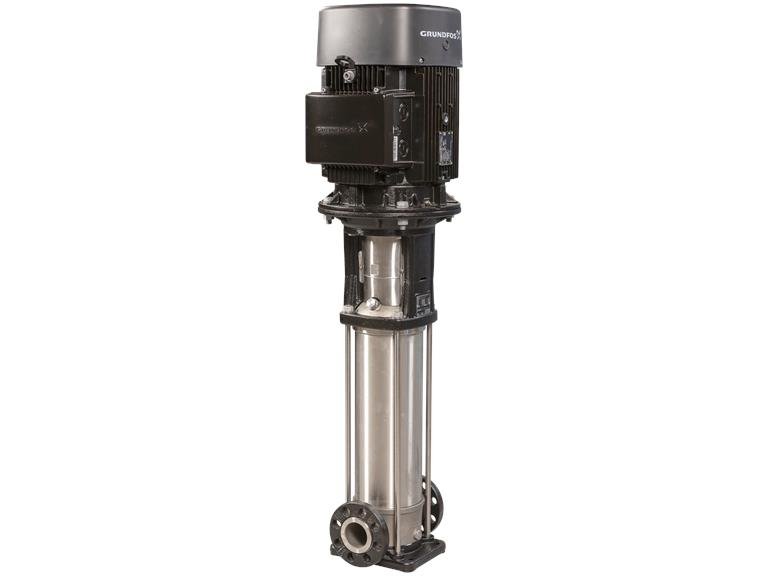

Grundfos CRN 15-1 A-P-A-E-HQQE

• Air conditioning
• Heating in commercial buildings/industry
• Pressure boosting in commercial buildings
• Wash and clean
• Cooling
• Industrial process water treatment
• Dirty water
• Drinking water treatment
• Irrigation
• Water distribution

• Can be used for a wide range of applications
• Highly efficient
• High hydraulic efficiency
• Suitable for challenging liquids and situations
• Suitable for liquid temperatures up to 180°C at a maximum of 25 bar (optional)
• Maintenance-friendly
• Highly corrosion resistant
• Space-saving design

Productnaam CRN 15-1 A-P-A-E-HQQE
Productnummer 96501756
EAN nummer 5700396228587

Pump housing Stainless steel
EN 1.4408
AISI 316
Impeller Stainless steel
EN 1.4401
AISI 316
Material code A
Code for rubber E.
Lower SIC

Maximum ambient temperature 60 ° C
Maximum operating pressure 25 bar
Max. pressure at permissible temp 25 bar / 120 °C
25 bar / -20 ° C
Connection type PJE
Size of the suction connection DN 50
Pressure connection size DN 50
Pressure stage for pipe connection PN 50
Flange size of the motor FT100
Pipe connection code P

Fluid handled Water
Liquid temperature range -20 .. 120 ° C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Motor standard IEC
Engine type 80C
IE efficiency class IE3

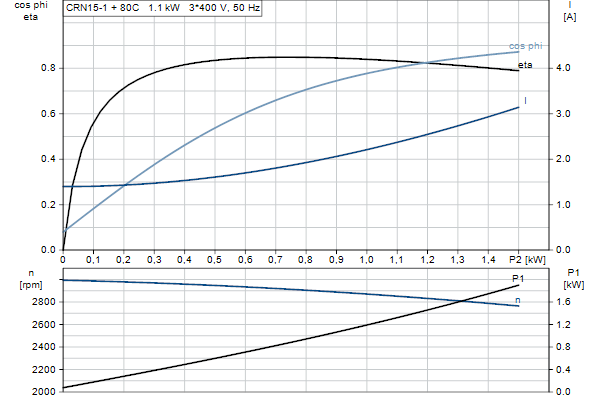

Rated power – P2 1.1 kW
Power (P2) required for pump 1.1 kW
Mains frequency 50 Hz

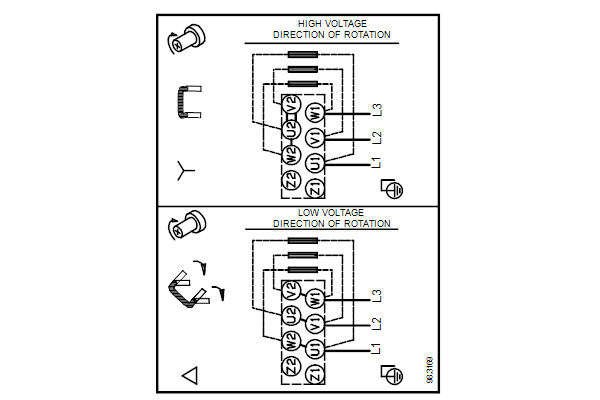

Rated voltage 3 x 220-240D/380-415Y V
Rated current 4.35/2.50 A
Starting current 450-500 %
Cos phi – power factor 0.83-0.76
Rated speed 2840-2870 rpm
Efficiency IE3 82.7%
Motor efficiency at rated load 82.7 %
Motor efficiency at 3/4 power 84.6 %
Motor efficiency at half power 85.4 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Motor protection NONE
Engine No. 85U05105

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 34 kg
Gross weight 38 kg
Transport volume 0.094 m³
Danish VVS No. 385914010
Country of origin HU
HS code 84137075
Frequency converter NONE
