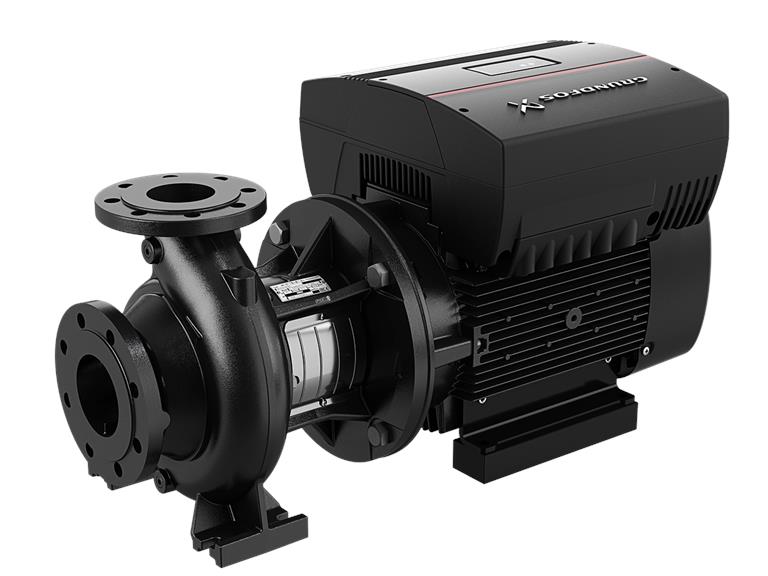

Grundfos NBE 150-250/230 EUP ASF1ABQQE

• Water supply
• Industrial pressure boosting
• Industrial liquid transport
• Indoor climate (air conditioning, heating and ventilation)
• Irrigation

Optimized hydraulics in the housing and impeller ensure unhindered fluid flow
O-ring seal between pump housing and cover, so no risk of leakage
Very corrosion resistant
Available with IE2 / IE3 / IE4 and MGE motors
Available with various shaft seal and material variants
PN 10 and 16 bar

Productnaam NBE 150-250/230 EUP ASF1ABQQE
Productnummer 99105340
EAN nummer 5712606853311

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Wear ring Brass
Impeller Cast iron
EN-GJL-200
ASTM class 30
Shaft Stainless steel
EN 1.4301
AISI 304
Internal coating pump housing CED
Material code A
Code for rubber E.

Maximum ambient temperature 40 °C
Maximum operating pressure 10 bar
Pipe connection standard EN 1092-2
Size of the suction connection DN 200
Pressure connection size DN 150
Pressure stage for pipe connection PN 10
Bearing Lubrication Grease
Pump house with feet Yes
Filling block Y
Code for pipe connection F1

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

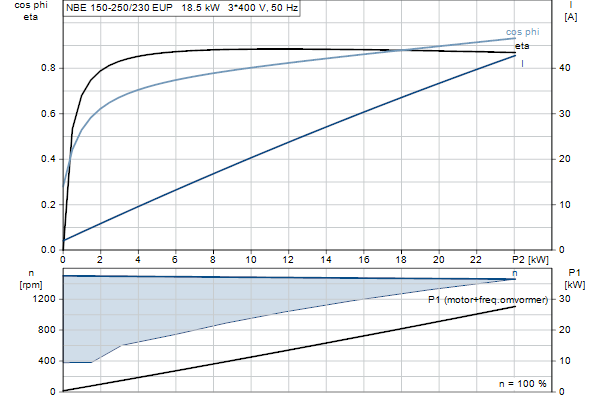

IE efficiency class IE2
Rated power - P2 18.5 kW
Mains frequency 50 Hz
Rated voltage 3 x 380-480 V
Rated current 37.0-30.0 A
Cos phi – power factor 0.91-0.88
Rated speed 240-1750 rpm
Efficiency IE2 91.2%
Motor efficiency at rated load 91.2 %
Pool number 4
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection YES
Motor Nr. 86901042
Mont. regulations according to IEC 34-7 IM B35

Minimum Efficiency Index, MAY ≥ 0.68
Net weight 345 kg
Gross weight 377 kg
Transport volume 0.951 m³
Country of origin HU
HS code 84137051
Control panel Standard
Functional Module PUMP I/O
Frequency converter Integrated
Pressure sensor N
