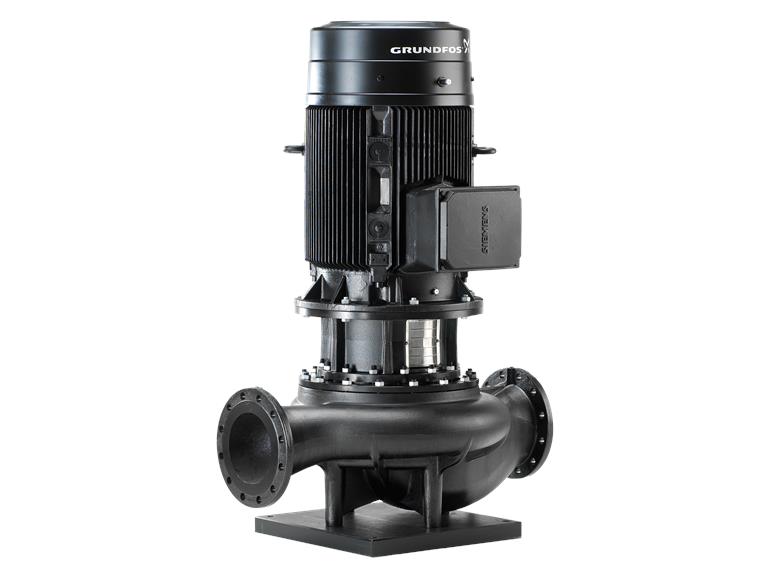

Grundfos TP 100-1040/2 A3-F-O-DQQE-1X1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Productnaam TP 100-1040/2 A3-F-O-DQQE-1X1
Productnummer 99087071
EAN nummer 5712606520787

Pump housing Ductile iron
Pump housing EN-GJS-400-18-LT
Pump Housing ASTM Grade 60-40-18
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code O

Ambient temperature range -20 .. 55 °C
Maximum operating pressure 25 bar
Max. pressure at permissible temp 25 bar / 120 °C
Type of connection DIN
Connection size DN 100
Pressure stage for pipe connection PN 25

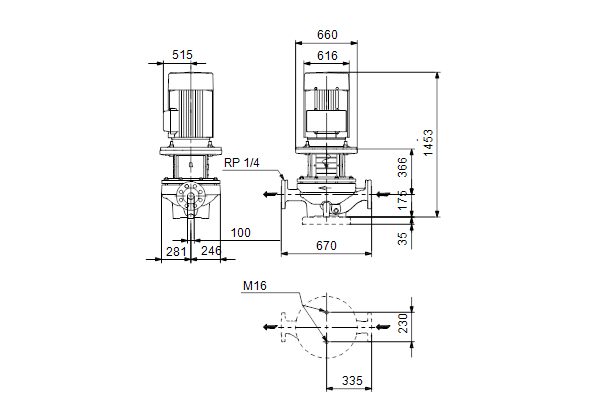

Installation length 670 mm
Flange size of the motor FF600
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -40 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type SIEMENS
IE efficiency class IE3
Rated power – P2 110 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-420D / 660-725Y V.
Rated current 191-176/110-102 A
Starting current 710-710 %
Cos phi – power factor 0.91
Rated speed 2982 rpm
Efficiency IE3 95.2%
Motor efficiency at rated load 95.2-95.2 %
Motor efficiency at 3/4 power 95.4-95.4 %
Engine efficiency at half power 94.9-94.9 %
Pool number 2
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection PTC
Engine No. 83U15244

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 1020 kg
Gross weight 1080 kg
Transport volume 2.13 m³
Country of origin HU
HS code 84137051
Frequency converter NONE
