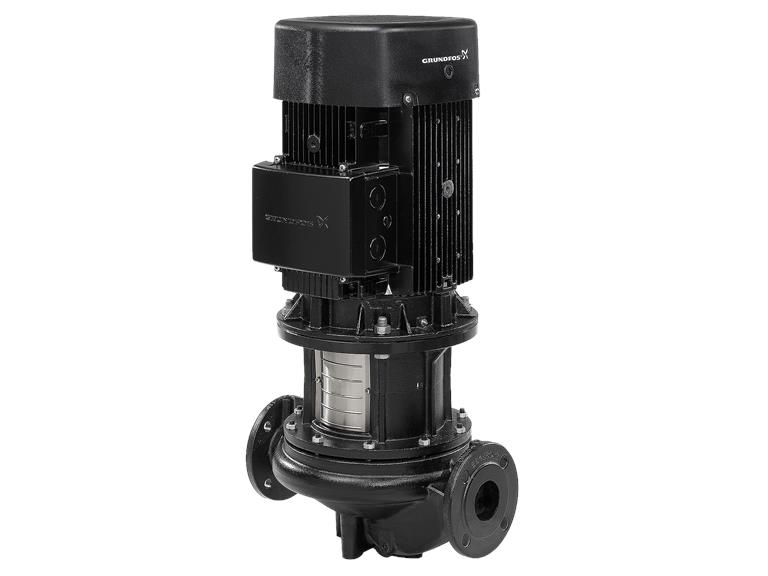

Grundfos TP 125-100/6 A-F-A-BQQE-KX5

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Productnaam TP 125-100/6 A-F-A-BQQE-KX5
Productnummer 98743769
EAN nummer 5712600824904

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code A

Ambient temperature range -20 .. 55 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 125
Pressure stage for pipe connection PN 16

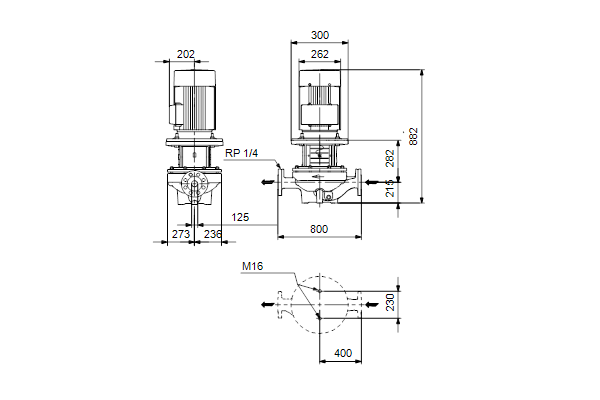

Installation length 800 mm
Flange size of the motor FF265
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type SIEMENS
IE efficiency class IE3
Rated power - P2 4 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-420D / 660-725Y V.
Rated current 9.10-8.20/5.20-4.80 A
Starting current 650-650 %
Cos phi – power factor 0.8
Rated speed 970 rpm
Efficiency IE3 86.8%
Motor efficiency at rated load 86.8-86.8 %
Motor efficiency at 3/4 power 87.7-87.7 %
Motor efficiency at half power 87.4-87.4 %
Pool number 6
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection PTC
Engine No. 83W15213

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 223 kg
Bruto gewicht 260 kg
Transport volume 0.74 m³
Danish VVS No. 381727100
Finnish LVI No. 4616137
Country of origin HU
HS code 84137051
Frequency converter NONE
