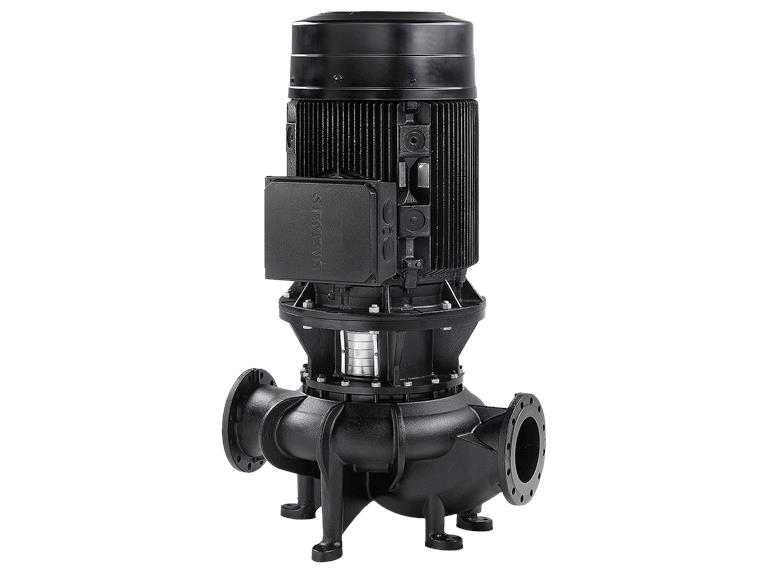

Grundfos TP 200-330/4 A-F-A-BQQE-SX3

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Productnaam TP 200-330/4 A-F-A-BQQE-SX3
Productnummer 96306170
EAN nummer 5700835126115

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code A

Ambient temperature range -20 .. 55 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 200
Pressure stage for pipe connection PN 16

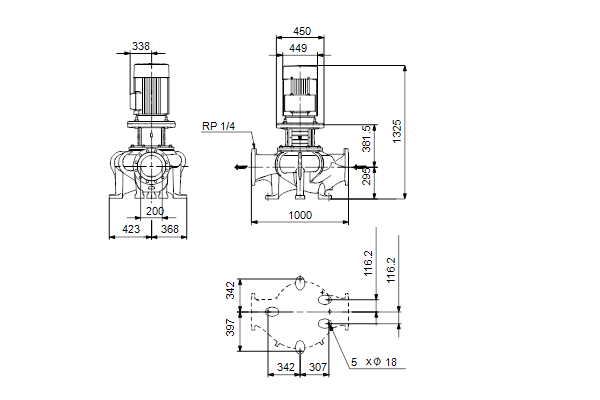

Installation length 1000 mm
Flange size of the motor FF400
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type SIEMENS
IE efficiency class IE3
Rated power - P2 37 kW
Mains frequency 50 Hz
Nominal voltage 3 x 380-420D / 660-725Y V.
Rated current 69.0-64.0/39.5-37.0 A
Starting current 640-640 %
Cos phi - power factor 0.86
Rated speed 1480 rpm
Efficiency IE3 93.9%
Motor efficiency at rated load 93.9-93.9 %
Motor efficiency at 3/4 power 94.5-94.5 %
Motor efficiency at half power 94.4-94.4 %
Pool number 4
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection PTC
Engine No. 99032123

Minimum Efficiency Index, MEI ≥ 0.70
Netto gewicht 712 kg
Bruto gewicht 757 kg
Transportvolume 1.66 m³
Danish VVS No. 381719330
Finnish LVI No. 4616175
Country of origin HU
HS code 84137051
Frequency converter NONE
