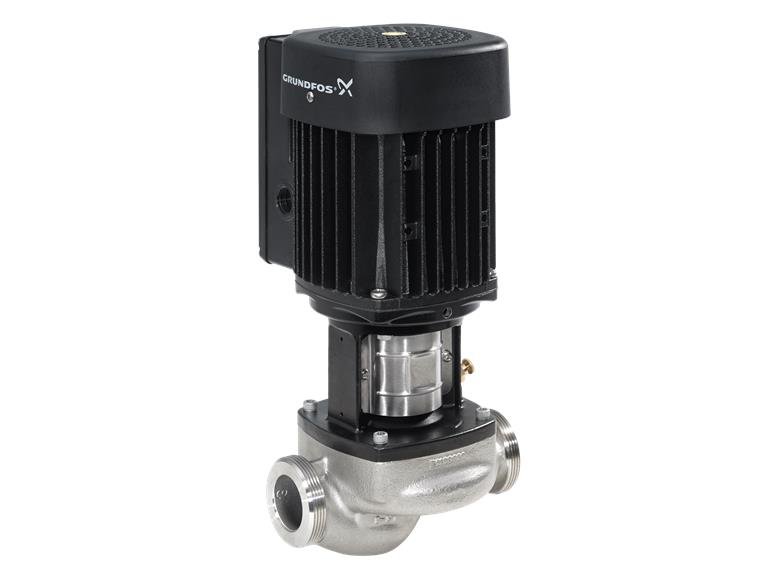

Grundfos TP 25-80/2 AOI-BQQE-BX1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 25-80/2 AOI-BQQE-BX1
Product number 98346639
EAN number 5711493380405

Pump housing Stainless steel
Pump housing EN 1.4308
Pump housing ASTM CF8
Impeller Composite
PES+30% GF
Material code I

Ambient temperature range -20 .. 40 °C
Maximum operating pressure 10 bar
Max. pressure at permissible temp 10 bar / 120 °C
Connection type G
Connection size DN 25
Pressure stage for pipe connection PN 10

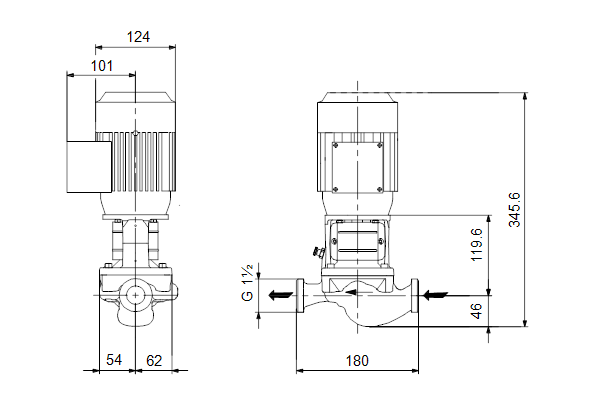

Installation length 180 mm
Flange size of the motor FT75
Pipe connection code O

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Rated power – P2 0.18 kW
Pool number 2
Engine No. 99995094

Minimum Efficiency Index, MEI ≥ 0.55
Net weight 8.4 kg
Gross weight 9.4 kg
Transport volume 0.03 m³
Danish VVS No. 38 1870.080
Country of origin HU
HS code 84137051
Frequency converter NONE
