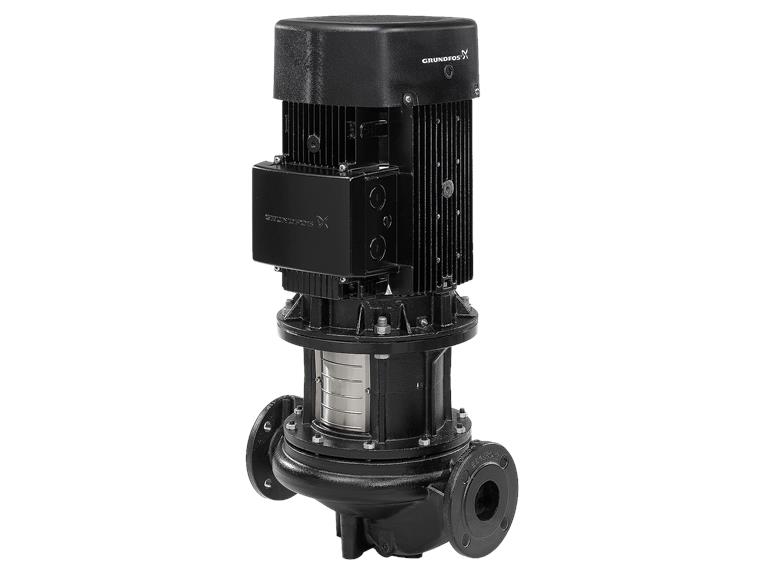

Grundfos TP 32-250/2 AFA-BQQE-HX1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 32-250/2 AFA-BQQE-HX1
Product number 96086674
EAN number 5700395306309

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code A

Ambient temperature range -30 .. 60 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 32
Pressure stage for pipe connection PN 16

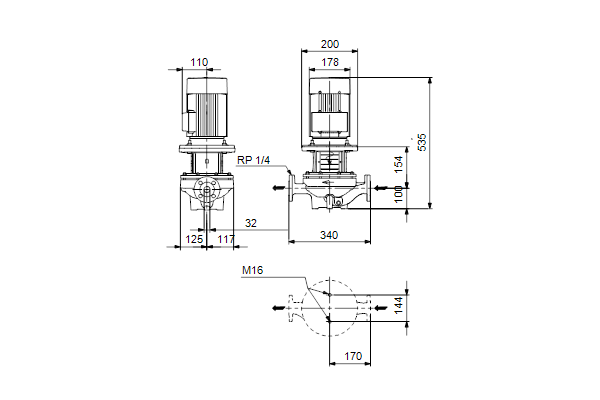

Installation length 340 mm
Flange size of the motor FF165
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type 90SD
IE efficiency class IE3
Rated power – P2 1.5 kW
Mains frequency 50 Hz

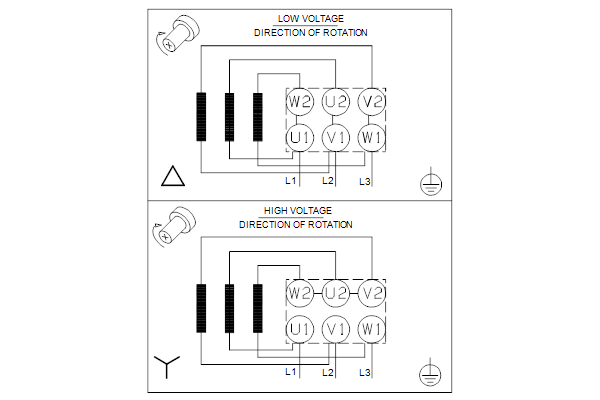

Rated voltage 3 x 220-240D/380-415Y V
Rated current 5.70/3.30 A
Starting current 750-820 %
Nominal speed 2890-2910 rpm
Efficiency IE3 84.2%
Motor efficiency at rated load 84.2 %
Motor efficiency at 3/4 power 86.4 %
Motor efficiency at half power 86.0 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Motor protection NONE
Engine No. 99583820

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 45.5 kg
Gross weight 57 kg
Transport volume 0.16 m³
Danish VVS No. 381701250
Finnish LVI no. 4616019
Norwegian NRF no. 9043514
Country of origin HU
HS code 84137051
Frequency converter NONE
