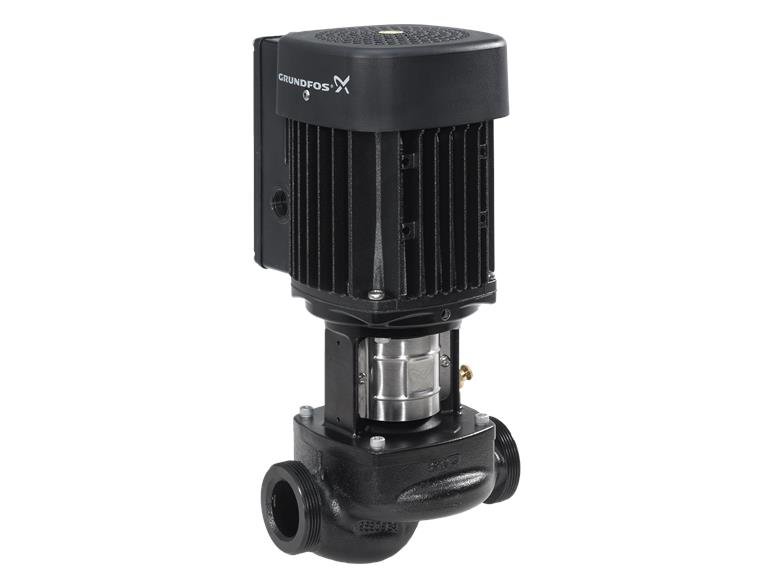

Grundfos TP 32-50/2 AOA-BQQE-AX1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 32-50/2 AOA-BQQE-AX1
Productnummer 98346590
EAN nummer 5711493379911

Pump housing Cast iron
Pump housing EN-GJL-150
Pump housing ASTM class 25
Impeller Composite
PES+30% GF
Material code A

Ambient temperature range -30 .. 40 °C
Maximum operating pressure 10 bar
Max. pressure at permissible temp 10 bar / 120 °C
Connection type G
Connection size DN 32
Pressure stage for pipe connection PN 10

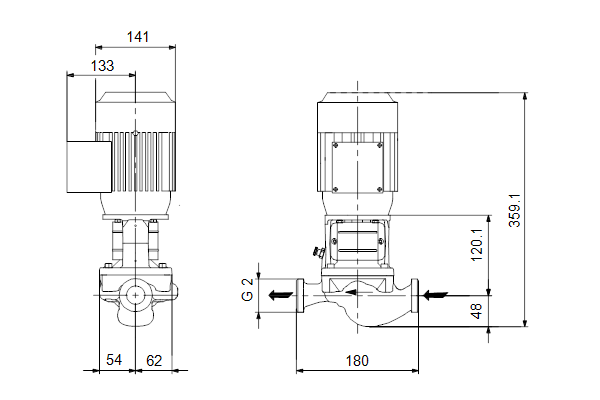

Installation length 180 mm
Flange size of the motor FT75
Pipe connection code O

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Motor type 71A
Rated power – P2 0.12 kW
Mains frequency 50 Hz
Rated voltage 1 x 220-240 V
Rated current 1.36-1.57 A
Starting current 400-370 %
Cos phi – power factor 0.77
Rated speed 2815-2835 rpm
Motor efficiency at rated load 52.3-53.2 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Engine protection PTO
Engine No. 98714251

Net weight 9.6 kg
Gross weight 11.6 kg
Transport volume 0.04 m³
Danish VVS No. 381801050
Country of origin HU
HS code 84137051
Frequency converter NONE
