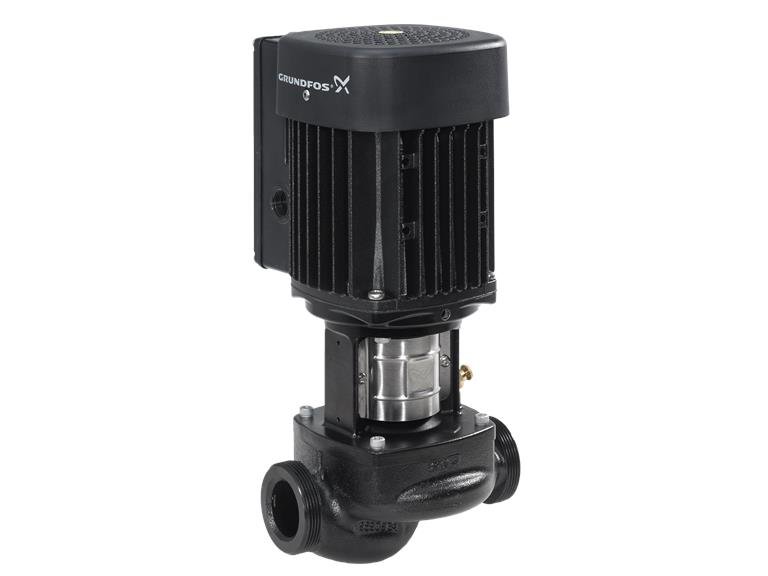

Grundfos TP 32-90/2 AOA-BQQE-DX1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 32-90/2 AOA-BQQE-DX1
Product number 98299122
EAN number 5711492694640

Pump housing Cast iron
Pump housing EN-GJL-200
Pump housing ASTM class 30
Impeller Composite
PES+30% GF
Material code A

Ambient temperature range -30 .. 40 °C
Maximum operating pressure 10 bar
Max. pressure at permissible temp 10 bar / 120 °C
Connection type G
Connection size DN 32
Pressure stage for pipe connection PN 10

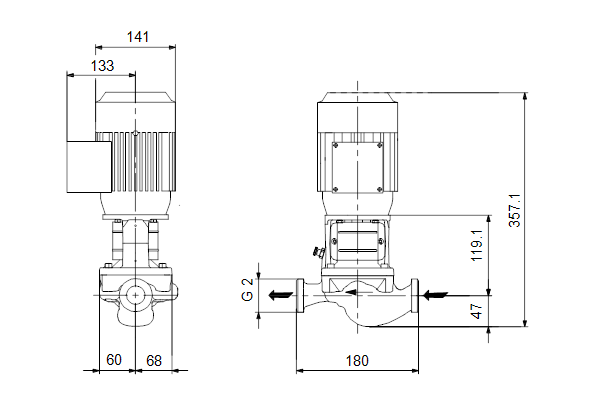

Installation length 180 mm
Flange size of the motor FT85
Pipe connection code O

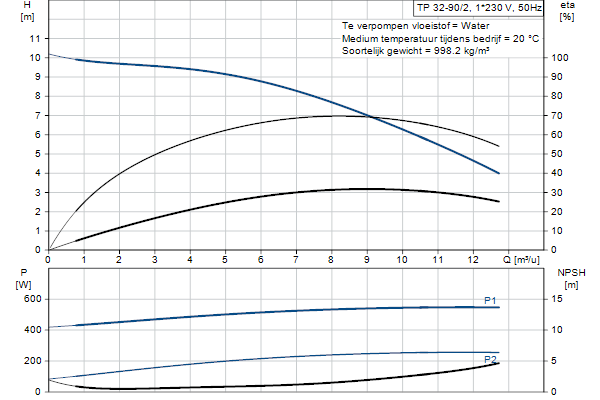

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

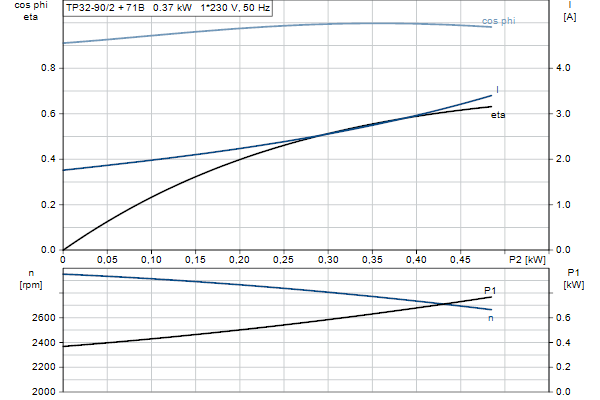

Engine type 71B
Rated power – P2 0.37 kW
Mains frequency 50 Hz

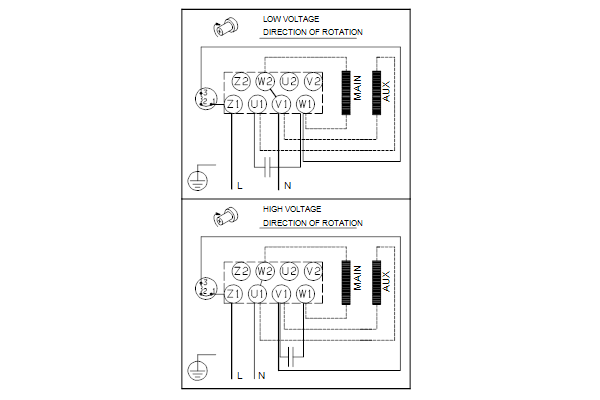

Rated voltage 1 x 220-230/240 V
Rated current 2.95/2.70 A
Starting current 280 %
Cos phi – power factor 0.99
Rated speed 2770 rpm
Motor efficiency at rated load 60.0-56.0 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Engine protection PTO
Engine No. 85215102

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 10.8 kg
Gross weight 12.8 kg
Transport volume 0.04 m³
Danish VVS No. 381801090
Country of origin HU
HS code 84137051
Frequency converter NONE
