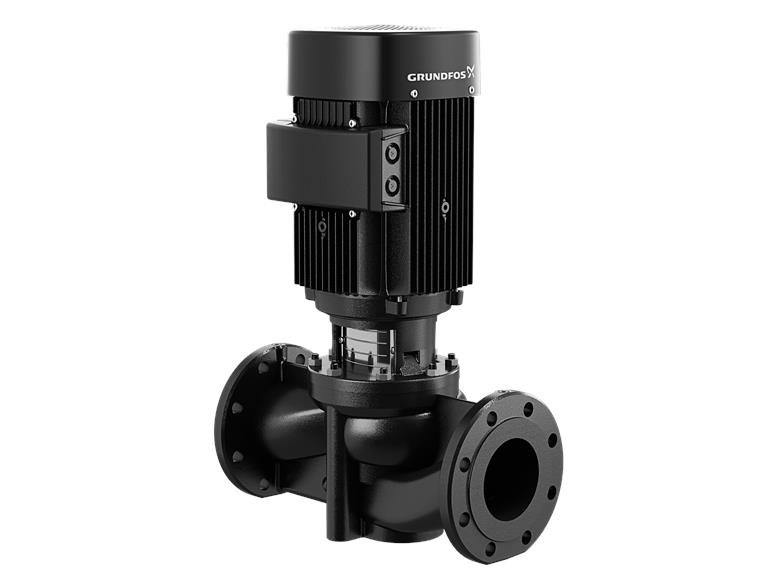

Grundfos TP 40-230/2 AFZ-BQQE-GX1

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 40-230/2 AFZ-BQQE-GX1
Product number 98391065
EAN number 5711494209217

Pump house Bronze
Pump housing CuSn10
Pump housing ASTM B505
Impeller Stainless steel
EN 1.4301
AISI 304
Material code Z

Ambient temperature range -30 .. 60 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 40
Pressure stage for pipe connection PN 16

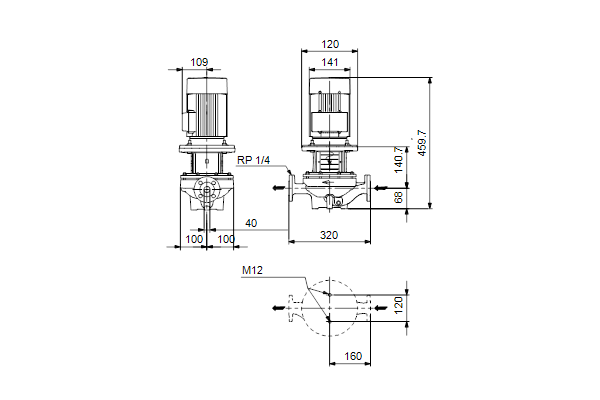

Installation length 320 mm
Flange size of the motor FT100
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type 80C
IE efficiency class IE3
Rated power – P2 1.1 kW
Mains frequency 50 Hz

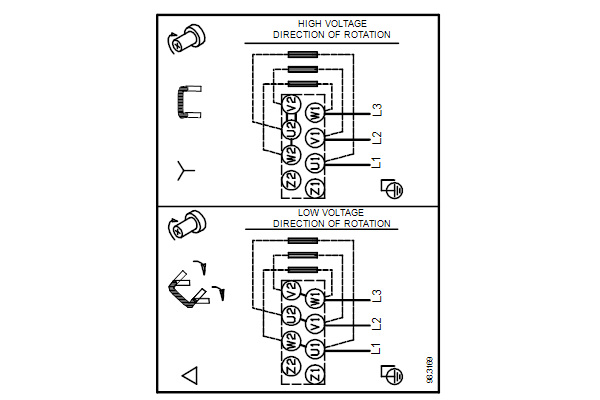

Rated voltage 3 x 220-240D/380-415Y V
Rated current 4.35/2.50 A
Starting current 450-500 %
Cos phi – power factor 0.83-0.76
Rated speed 2840-2870 rpm

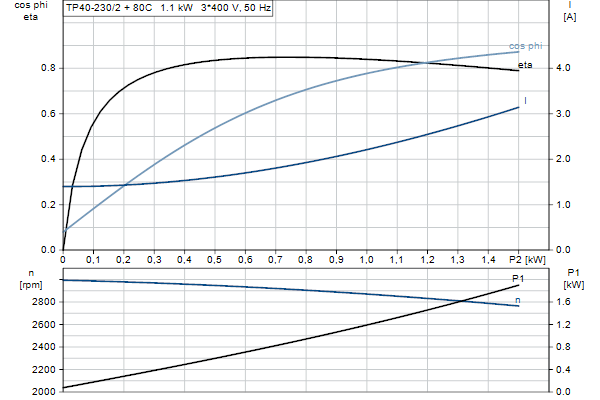

Efficiency IE3 82.7%
Motor efficiency at rated load 82.7 %
Motor efficiency at 3/4 power 84.6 %
Motor efficiency at half power 85.4 %
Pool number 2
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Motor protection NONE
Engine No. 85U05105

Minimum Efficiency Index, MAY ≥ 0.61
Net weight 31.9 kg
Gross weight 35.4 kg
Transport volume 0.08 m³
Danish VVS No. 381882230
Country of origin HU
HS code 84137051
Frequency converter NONE
