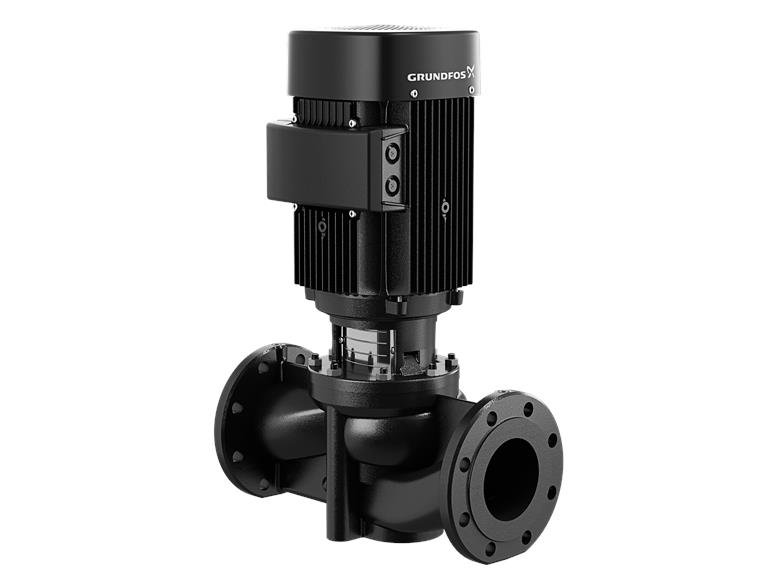

Grundfos TP 65-60/4 AFA-BQQE-EX3

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Product name TP 65-60/4 AFA-BQQE-EX3
Product number 98957994
EAN number 5712604244616

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Stainless steel
EN 1.4301
AISI 304
Material code A

Ambient temperature range -30 .. 40 °C
Maximum operating pressure 10 bar
Max. pressure at permissible temp 10 bar / 120 °C
Type of connection DIN
Connection size DN 65
Pressure stage for pipe connection PN 6/10

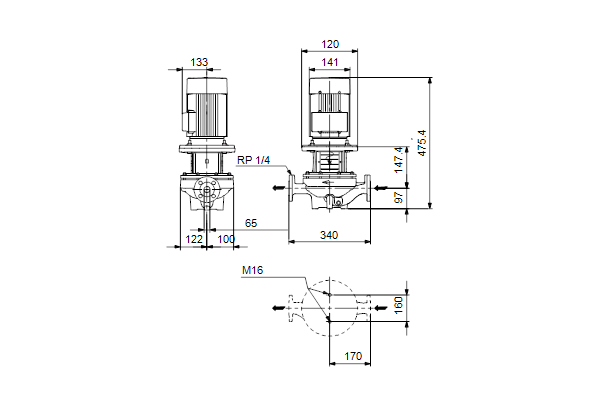

Installation length 340 mm
Flange size of the motor FT100
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type 80B
Rated power – P2 0.55 kW
Mains frequency 50 Hz
Rated voltage 1 x 220-230 V
Rated current 4 A
Starting current 260 %
Cos phi – power factor 0.97
Rated speed 1350-1370 rpm
Motor efficiency at rated load 66-64 %
Pool number 4
Density Class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F.
Engine protection PTO
Engine No. 86215103

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 36.3 kg
Gross weight 41 kg
Transport volume 0.09 m³
Country of origin HU
HS code 84137051
Frequency converter NONE
