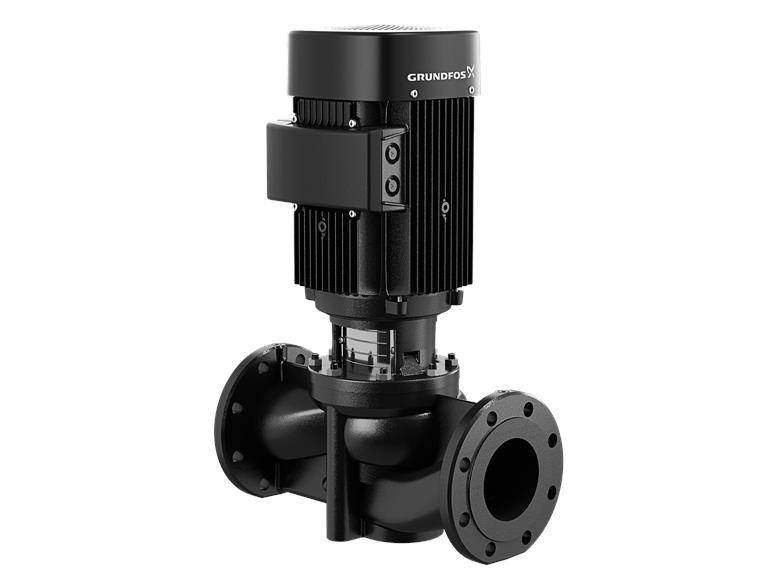

Grundfos TP 80-60/4 AI-F-A-BQQE-FX3

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
• Cooling systems
• Industrial systems

• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• TP pumps are equipped with highly efficient IE3 motors for lower energy consumption
• Top pull-out design

Productnaam TP 80-60/4 AI-F-A-BQQE-FX3
Productnummer 98958026
EAN nummer 5712604244937

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Stainless steel
EN 1.4301
AISI 304
Material code A

Ambient temperature range -20 .. 55 °C
Maximum operating pressure 6 bar
Max. pressure at permitted temp 6 bar / 120 °C
Type of connection DIN
Connection size DN 80
Pressure stage for pipe connection PN 6

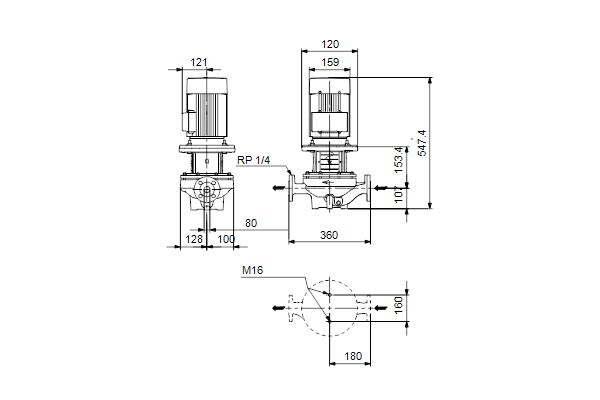

Installation length 360 mm
Flange size of the motor FT100
Code for pipe connection F.

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Engine type SIEMENS
IE efficiency class IE3
Rated power – P2 0.75 kW
Mains frequency 50 Hz

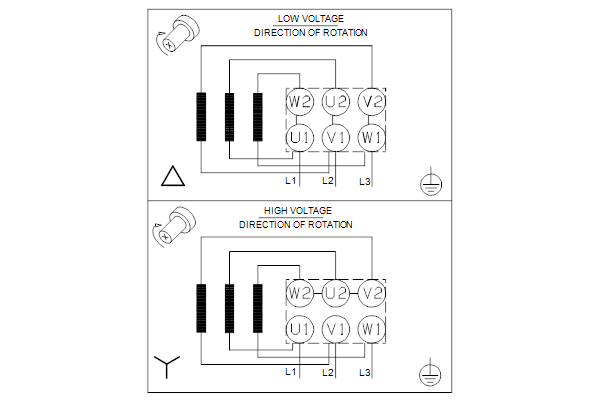

Rated voltage 3 x 220-240D/380-420Y V
Rated current 3.1-2.9/1.79-1.66 A
Starting current 710-710 %
Cos phi – power factor 0.75
Rated speed 1450 rpm

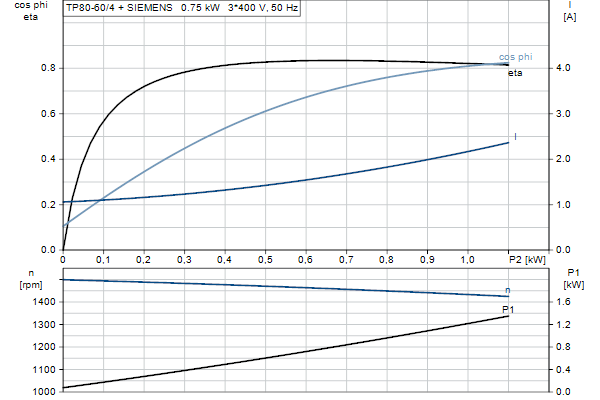

Efficiency IE3 82.5%
Motor efficiency at rated load 82.5-82.5 %
Motor efficiency at 3/4 power 82.3-82.3 %
Motor efficiency at half power 79.9-79.9 %
Pool number 4
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection NONE
Motor Nr. 99900480

Minimum Efficiency Index, MEI ≥ 0.70
Netto gewicht 44.2 kg
Bruto gewicht 52.8 kg
Transport volume 0.2 m³
Finnish LVI No. 4616089
Norwegian NRF no. 9043592
Country of origin HU
HS code 84137051
Frequency converter NONE
