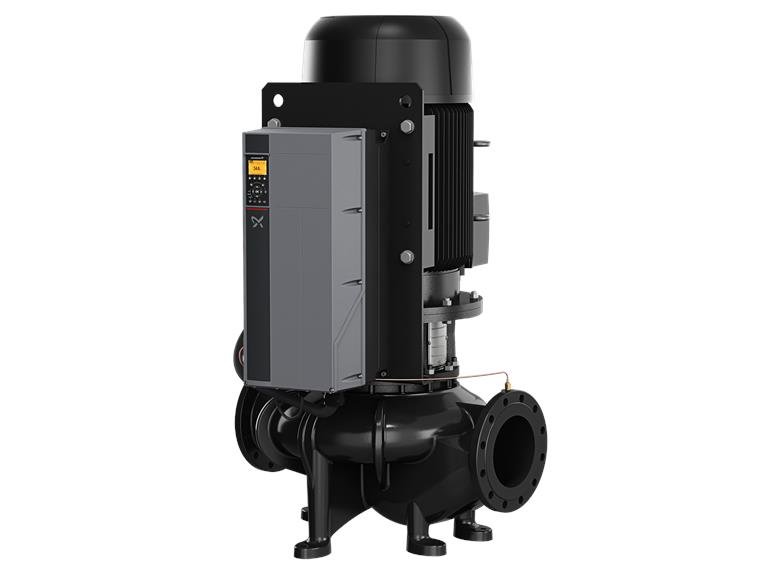

Grundfos TPE 200-240/4 SC-AFA-BQQE-RX3

Grundfos TPE vertical inline pumps are used for various applications. The pumps are single-stage inline centrifugal pumps with standard motor and mechanical seals. The main difference between Grundfos TP and TPE is the motor. TPE motors have a built-in frequency converter, which allows different control methods to be used. Grundfos TPE pumps are now available with the extremely efficient IE5 motors.

Request a free quote

Extensive product information

Applications

• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems

Features and benefits

• Available with the extremely efficient IE5 motors
• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• Pumps with motor power from 11 kW are supplied incl. base plate
• Pump housing and pump head/motor seat are electrophoretically coated for improved corrosion resistance
• TPE pumps can be expanded with modules for communication with LONWorks, Profibus DP, Modbus RTU, GSM/GPRS/SMS and BACnet MS/TP

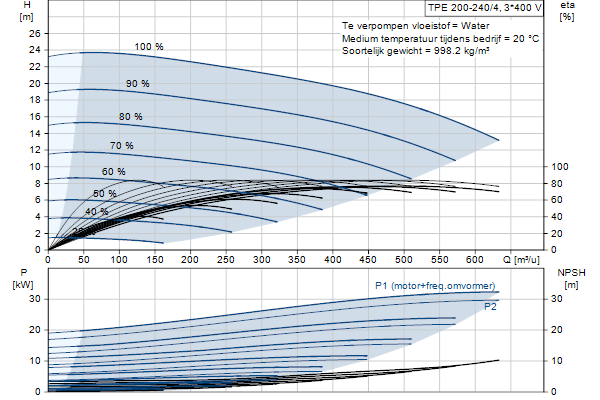

Specifications

Product name TPE 200-240/4 SC-AFA-BQQE-RX3
Product number 99474597
EAN number 5713829711617

Materials

Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code A

Installation details

Ambient temperature range -20 .. 55 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 200
Pressure stage for pipe connection PN 16

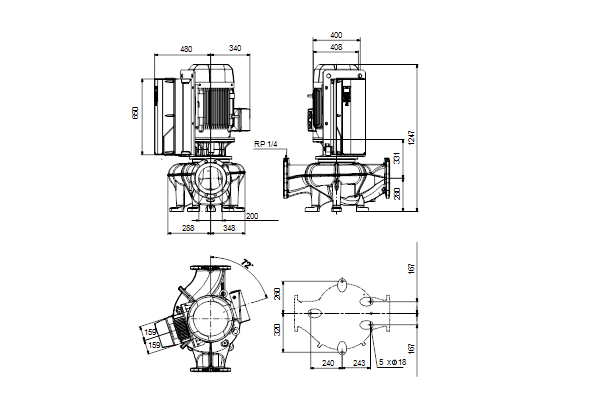

Installation length 900 mm
Flange size of the motor FF350
Code for pipe connection F.

Medium

Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

Electrical data

Engine type SIEMENS
IE efficiency class IE3
Nominal power - P2 30 kW
Mains frequency 50 Hz

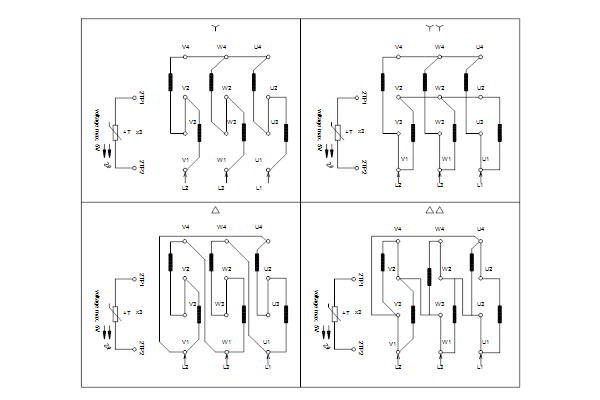

Nominal voltage 3 x 380-420D / 660-725Y V.
Rated current 57.5-54.0/33.5-31.5 A
Starting current 690-690 %
Cos phi – power factor 0.8
Rated speed 1470 rpm
Efficiency IE3 93.6%
Motor efficiency at rated load 93.6-93.6 %
Motor efficiency at 3/4 power 94.3-94.3 %
Motor efficiency at half power 94.4-94.4 %
Pool number 4
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection PTC
Engine No. 99454135

Other information

Minimum Efficiency Index, MEI ≥ 0.70
Net weight 568 kg
Gross weight 699 kg
Transport volume 2.38 m³
Configuration file no. 99465328
Country of origin HU
HS code 84137051
VFD part number 99448799
Frequency converter Integrated
Frequency converter type CUE 3X380-500V IP55 RUG 30KW
Suitable for VFO CE, CULUS, C-TICK
