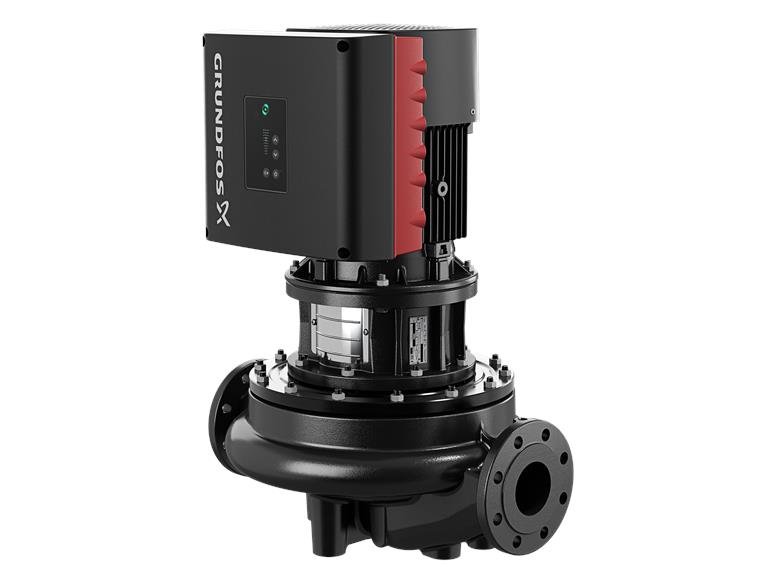

Grundfos TPE 32-320/2 AFA-BQQE-IDB
Grundfos TPE 32-320/2 AFA-BQQE-IDB
Request a free quote
Extensive product information
Applications
• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
Features and benefits
• Available with the extremely efficient IE5 motors
• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• Pumps with motor power from 11 kW are supplied incl. base plate
• Pump housing and pump head/motor seat are electrophoretically coated for improved corrosion resistance
• TPE pumps can be expanded with modules for communication with LONWorks, Profibus DP, Modbus RTU, GSM/GPRS/SMS and BACnet MS/TP
Specifications
Product Name TPE 32-320/2 AFA-BQQE-IDB
Product number 98112558
EAN number 5710629214386
Materials
Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Cast iron
EN-GJL-200
ASTM class 30
Material code A
Installation details
Ambient temperature range -20 .. 50 °C
Maximum operating pressure 16 bar
Max. pressure at stated temp. 16 bar / 120 ° C
Type of connection DIN
Connection size DN 32
Pressure stage for pipe connection PN 16

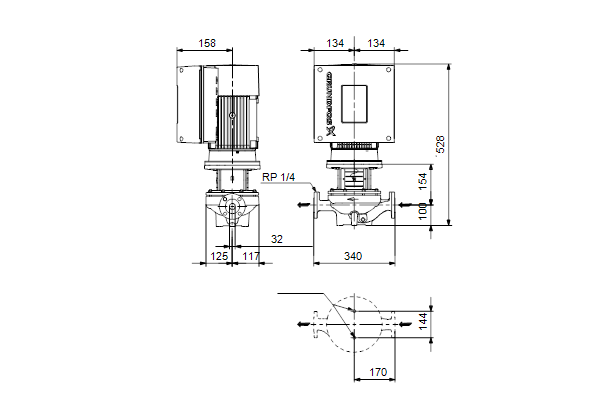

Installation length 340 mm
Flange size of the motor FF165
Code for pipe connection F.
Medium
Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

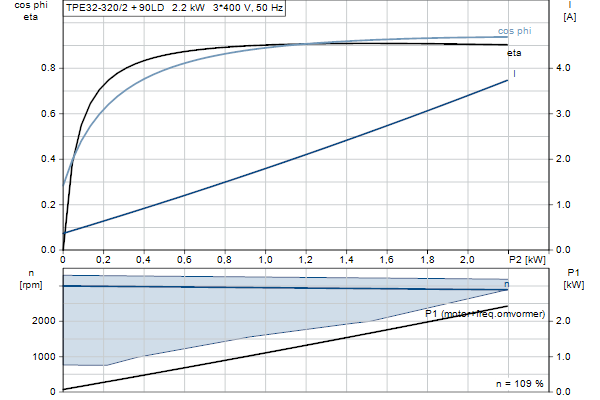

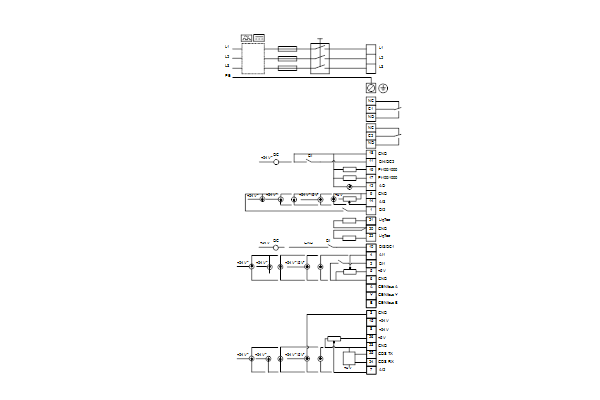

Electrical data
Engine type 90LD
IE efficiency class IE5
Rated power - P2 2.2 kW
Mains frequency 50 Hz
Rated voltage 3 x 380-500 V
Rated current 4.15-3.40 A
Cos phi – power factor 0.93-0.87
Rated speed 360-4000 rpm
Efficiency 90.1%
Motor efficiency at rated load 90.1 %
Pool number 2
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection ELEC
Engine No. 98534624
Other information
Minimum Efficiency Index, MEI ≥ 0.70
Net weight 45.3 kg
Gross weight 56 kg
Transport volume 0.16 m³
Configuration file no. 98478729
Danish VVS No. 382011320
Finnish LVI no. 4616450
Country of origin HU
HS code 84137051
Control panel HMI200 – Standard
Functional Module FM300-ADVANCED
Frequency converter Integrated
