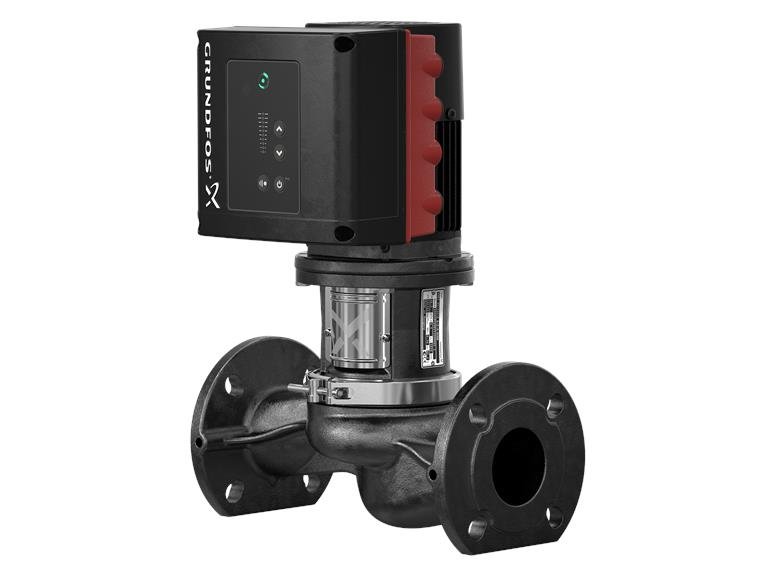

Grundfos TPE2 50-180 N-A-F-A-BQQE-GAC
Grundfos TPE2 50-180 N-A-F-A-BQQE-GAC
Request a free quote
Extensive product information
Applications
• District heating installations
• Heating systems
• Air Conditioning Systems
• Cooling systems
• Industrial systems
Features and benefits
• Available with the extremely efficient IE5 motors
• Medium temperature -25 C to +150 ºC
• PN 6/10, PN 10, PN16 and PN25
• Ambient temperature up to max. 60 °C
• The impeller is hydraulically and mechanically balanced to increase the life of the shaft seals and motor bearings
• Pumps with motor power from 11 kW are supplied incl. base plate
• Pump housing and pump head/motor seat are electrophoretically coated for improved corrosion resistance
• TPE pumps can be expanded with modules for communication with LONWorks, Profibus DP, Modbus RTU, GSM/GPRS/SMS and BACnet MS/TP
Specifications
Productnaam TPE2 50-180 N-A-F-A-BQQE-GAC
Productnummer 98438353
EAN nummer 5711495017217
Materials
Pump housing Cast iron
Pump housing EN-GJL-250
Pump housing ASTM class 35
Impeller Composite
PES+30% GF
Material code A

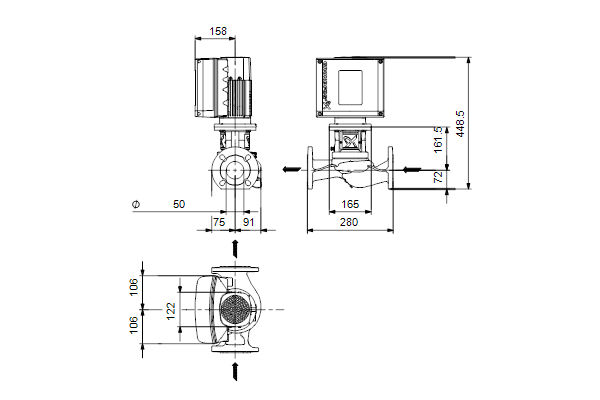

Installation details
Ambient temperature range -20 .. 50 °C
Maximum operating pressure 10 bar
Max. pressure at permissible temp 10 bar / 120 °C
Type of connection DIN
Connection size DN 50
Pressure stage for pipe connection PN 6/10
Installation length 280 mm
Engine flange size 56C
Code for pipe connection F.

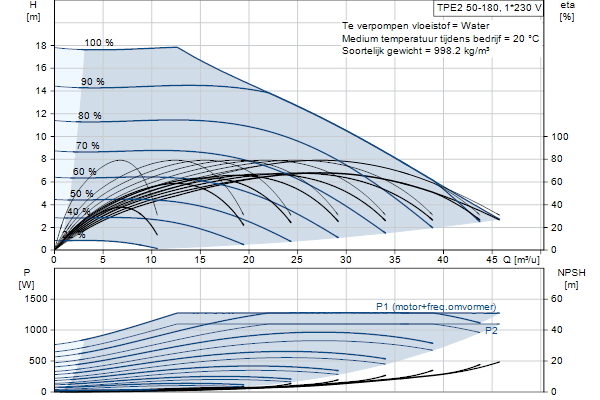

Medium
Fluid handled Water
Liquid temperature range -25 .. 120 °C
Medium temperature during operation 20 ° C
Density 998.2 kg / m³

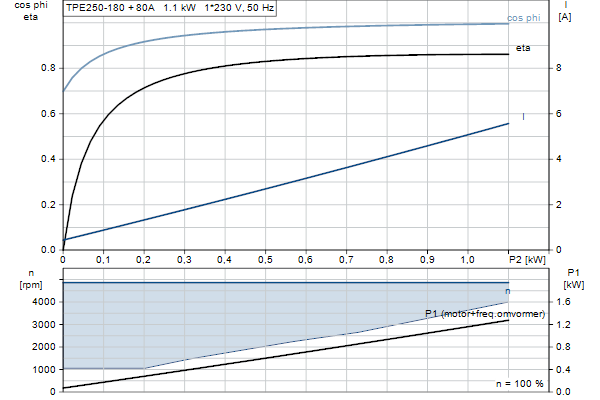

Electrical data
Motor type 80A
IE efficiency class IE5
Rated power – P2 1.1 kW
Mains frequency 50 / 60 Hz
Rated voltage 1 x 200-240 V
Rated current 6.80-5.70 A
Cos phi – power factor 0.99
Rated speed 480-5900 rpm
Yield 85.7%
Motor efficiency at rated load 85.7 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F.
Motor protection ELEC
Engine No. 99138030
Other information
Minimum Efficiency Index, MEI ≥ 0.70
Net weight 24.7 kg
Gross weight 31.9 kg
Transport volume 0.1 m³
Configuratie bestand nr 98819177
Danish VVS No. 382202180
Finnish LVI No. 4616227
Norwegian NRF no. 9043488
Country of origin HU
HS code 84137051
Control panel HMI200 – Standard
Functional Module FM300-ADVANCED
Frequency converter Integrated
