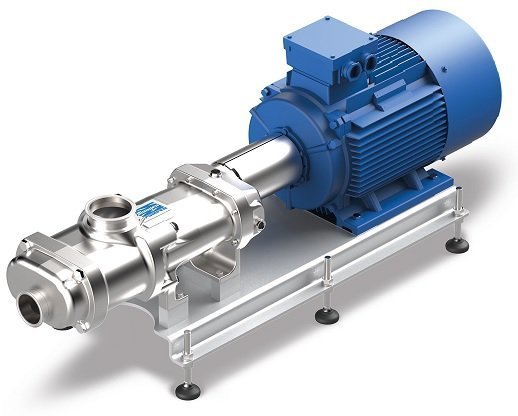

Wangen twin screw pump
The Wangen screw spindle pump is part of the Wangen hygienic pump solutions for the food, pharmaceutical and cosmetic industry.
The screw spindle pump is designed to reliably pump low to highly viscous, volatile or gaseous products and for applications requiring maximum hygiene and efficiency.
The screw spindle pump from Wangen has been developed according to the highest hygienic guidelines 3A and EHEDG and can be cleaned CIP (Cleaning in Place) and SIP (Sterilization in Place).
The Wangen screw spindle pump is available in four series: Wangen Twin 70, Wangen Twin 104, Wangen Twin 130, Wangen Twin 180 and Wangen Vario Twin.
Features and benefits
- The screw spindle concept is very reliable
- Simple and inexpensive to maintain
- All products that come into contact with the product are made of stainless steel 1.4404
- Flow rate up to 100,000 l / h, very good self-priming properties lower than <2.
- No pulsation
- Suitable for high and low viscous applications (up to 1,000,000 cPs)
- All elastomer materials used have an FDA and EC1935 / 2004 declaration
- 3A and EHEDG certified
Toepassing
- Dairy products
- Beverages and juices
- Meat processing
- Sauces
- Cosmetics
- Foods
Technical specifications
| Maximum system pressure: | 30 bar |
| Maximum capacity: | 200 m³ / h |
| Viscosity: | 1000000 mPas |
| Certifications: | 3A, EHEDG |
| Maximum temperature: | +130 ° C |
